QA-4000 - 1 9/16" x 1 3/8" hole capacity

QA-4000 - 1 9/16" x 1 3/8" hole capacity

Regular price $3,195.00 USD
Regular price Sale price $3,195.00 USD
Sale Sold out
Shipping calculated at checkout.

Load Detection

Side mounted LED graph displays current drill status before, during and after the drilling operation. The load monitoring LEDs also offer advanced notice of worn or damaged cutters.

Auto-return Function

Once drilling is completed and the slug is ejected from the hole, the cutting bit is quickly retracted.
This quick drill motor retraction allows the user to move on to the next hole more quickly.

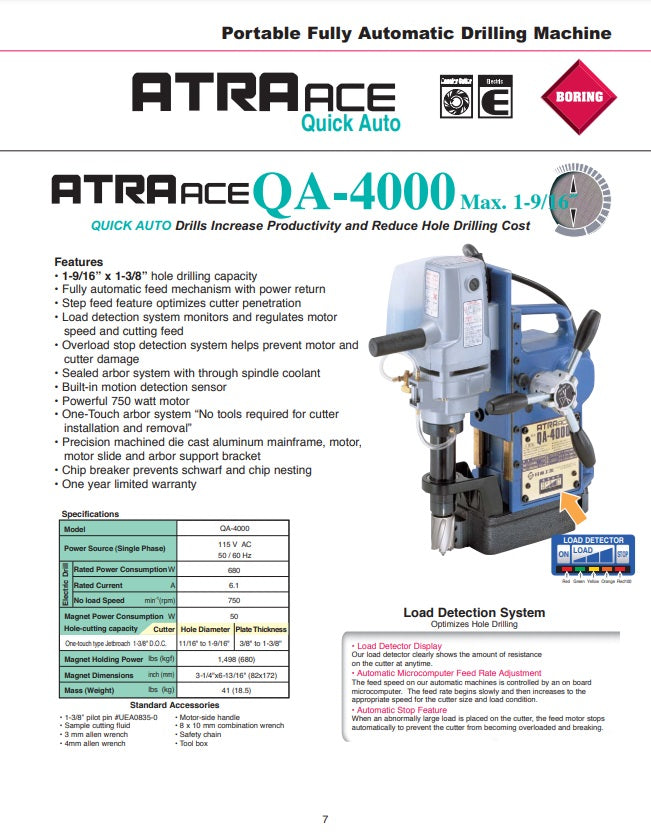

Spec Sheet and Brochure

Features
• 1-9/16” x 1-3/8” hole drilling capacity
• Fully automatic feed mechanism with power return
• Step feed feature optimizes cutter penetration
• Load detection system monitors and regulates motor
speed and cutting feed
• Overload stop detection system helps prevent motor and
cutter damage
• Sealed arbor system with through spindle coolant
• Built-in motion detection sensor
• Powerful 750 watt motor
• One-Touch arbor system “No tools required for cutter
installation and removal”
• Precision machined die cast aluminum mainframe, motor,
motor slide and arbor support bracket
• Chip breaker prevents schwarf and chip nesting
• One year limited warranty
