TW4400 Drawn ARC Stud Welder - 5/8" Max Stud Diameter
TW4400 Drawn ARC Stud Welder - 5/8" Max Stud Diameter
Regular price
$11,550.00 USD
Regular price
Sale price
$11,550.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
-

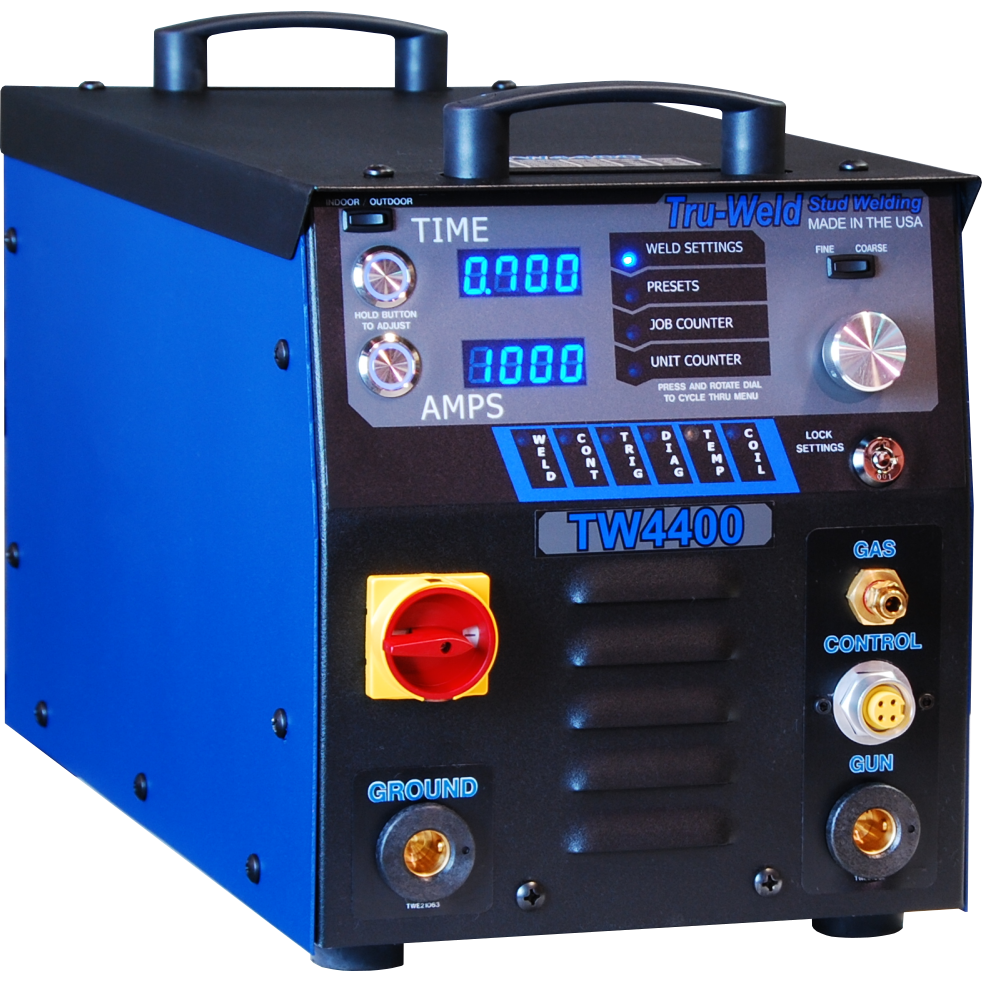

The TW4400 is a fully integrated stud welding system for ferrule-shielded and gas-shielded drawn arc stud welding processes. The TW4400 contains digital controls for weld time, weld current, and gas purge time. The system was designed to be an ideal fit for shop use, weld up to 5/8″ diameter threaded studs. This is all contained in a compact, portable package.
NEW PRO-TECH’D technology protects the gun circuitry
NEW Improved user interface for more intuitive setup
NEW Factory presets and user customizable presets
NEW Improved weld control
Includes:

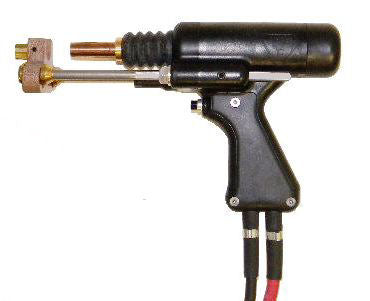

(1) TW4400 Power Supply, (1) TWE19000 Light Duty Stud Gun, (1) 25ft of Combo Cable, (1) 15ft Ground Cable
TW4400 Specifications
- Size/Dimension:
Height 12.6” (320mm)
Width 11” (280mm)
Length 22.4" (570mm) - Weight:
126 lbs (57 Kg) - Weld Range:
1/8" to 5/8" diameter - Duty Cycle:
1/8” through 1/4" - unlimited
3/8" - 7 to 8 per minute
1/2" - 4 to 5 per minute
5/8" - 2 to 3 per minute - Input Voltage:
230 / 460 VAC 3 Phase 60Hz - Fusing Requirement:
(slow acting) 230/50 Amps
460/25 Amps
For the gun only, click here.
